The pin-gear drive mechanism revolving restaurants have smooth turning, reliable operation, long life and minimal wear and tear.
Positional Turntable is popular used on automatic production line. It can save a lot space in workshop.
Truck turntables offer a complete range of size from 9-meter to 24-meter and load capability up to 500 metric tons.
Bike turntables are very suitable for display and automotive technical centre.
Revolving sign provide motion that attracts attention, leads to interest and results in profit.
Car turntables are very suitable for display, driveway, garage and automotive technical centre.
Small turntables are from dia 150mm to dia 500mm for the purpose of retail display items.
Truck turntables offer a complete range of size from 9-meter to 24-meter and load capability up to 500 metric tons.
Positional Turntable is popular used on automatic production line. It can save a lot space in workshop.
The pin-gear drive mechanism revolving restaurants have smooth turning, reliable operation, long life and minimal wear and tear.
Positional Turntable is popular used on automatic production line. It can save a lot space in workshop.
Truck turntables offer a complete range of size from 9-meter to 24-meter and load capability up to 500 metric tons.
Bike turntables are very suitable for display and automotive technical centre.
Revolving sign provide motion that attracts attention, leads to interest and results in profit.
Car turntables are very suitable for display, driveway, garage and automotive technical centre.
Small turntables are from dia 150mm to dia 500mm for the purpose of retail display items.
The pin-gear drive mechanism revolving restaurants have smooth turning, reliable operation, long life and minimal wear and tear.
Positional Turntable is popular used on automatic production line. It can save a lot space in workshop.
Truck turntables offer a complete range of size from 9-meter to 24-meter and load capability up to 500 metric tons.
Bike turntables are very suitable for display and automotive technical centre.
Revolving sign provide motion that attracts attention, leads to interest and results in profit.
Car turntables are very suitable for display, driveway, garage and automotive technical centre.
Small turntables are from dia 150mm to dia 500mm for the purpose of retail display items.
The pin-gear drive mechanism revolving restaurants have smooth turning, reliable operation, long life and minimal wear and tear.
Positional Turntable is popular used on automatic production line. It can save a lot space in workshop.
Truck turntables offer a complete range of size from 9-meter to 24-meter and load capability up to 500 metric tons.
Bike turntables are very suitable for display and automotive technical centre.
Revolving sign provide motion that attracts attention, leads to interest and results in profit.
Car turntables are very suitable for display, driveway, garage and automotive technical centre.
Small turntables are from dia 150mm to dia 500mm for the purpose of retail display items.
image carousel

Technology

Weizhong Revolving Machinery Co., Ltd. Has been operating since 1991 and is the world`s leading manufacturer of revolving restaurants, car turntables, truck turntables and industrial turntables & we are the authorised supplier of these turntable in India. We can supply turntables of any size and load capability, in diameter from 3-meter to 60-meter and capable of accommodating loads 500kg to1, 000 metric tons. Weizhong turntables apply their own Patent Zx and ZM Drive system. These are technically superior drive systems, without the problems that are typically associated with friction drive systems. The advantages of ZX and ZM Drives are smooth revolving, reliable operation, and long life with minimal wear and tear.

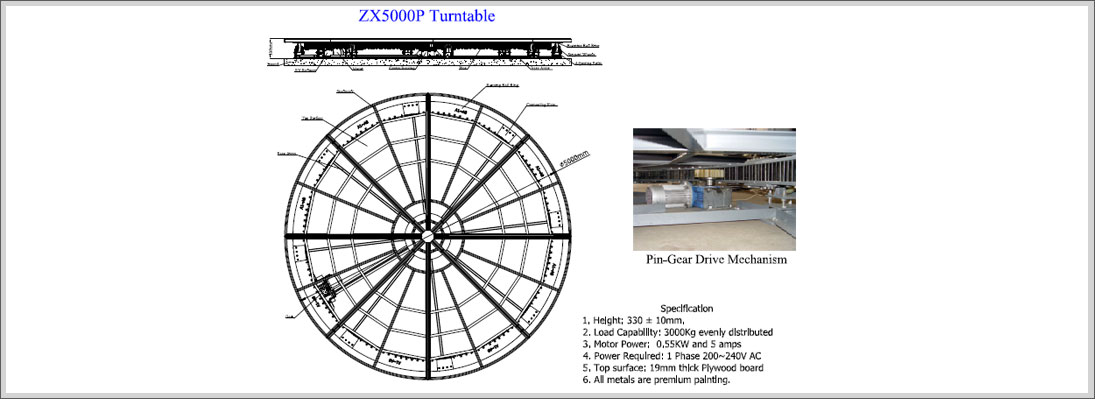

ZX Model

Pin-Gear Drive is a special form of fixed axle gear transmission. The large wheel with cylindrical pin teeth is called pin wheel. It can be divided into outer gearing pin gear transmission, inner gearing pin gear,and the rack gearing pin gear transmission. As the pin wheel is round pin shaped, it has simple structure, easy processing, low cost, easy overhaul compared to the general gear. Suitable for low-speed and heavy-duty mechanical transmission and for occasions with more dust, poor lubrication condition and so on. At the heart of all our turntables is our own the Pin-Gear Drive system. It is a technically superior drive system, without the problems that are typically associated with friction drive systems.

Advantages of the Pin-Gear drive system:
1. Elimination of friction wheel slip.
2. Elimination of periodic friction wheel spring adjustments. Spring fade over time.
3. Ability to maintain precision rotation/angular accuracy and tracking. This is particularly important with antenna testing turntables and in other uses    where backlash reduction or elimination is critical.
4. Fewer moving parts to maintain.

ZM Model

ZM Model is an easier to install and dismantle type of turntable. This is more popular for Auto shows and exhibitions due to the following reasons:
1. Light weight - No part of the turntable is more than 68kgs
2. Simple design - Simple design makes this turntable easy to assemble
3. Remote control system - This is very useful in Auto shows and exhibitions to control the movement
4. Power supply in the center - There is option of power supply in the center to the turntable
5. Powerful and reliable - ZM type turntables have very good load capacity and are very reliable
